V-TAI PTW-1900 Roll-in Rack Trolley Washer

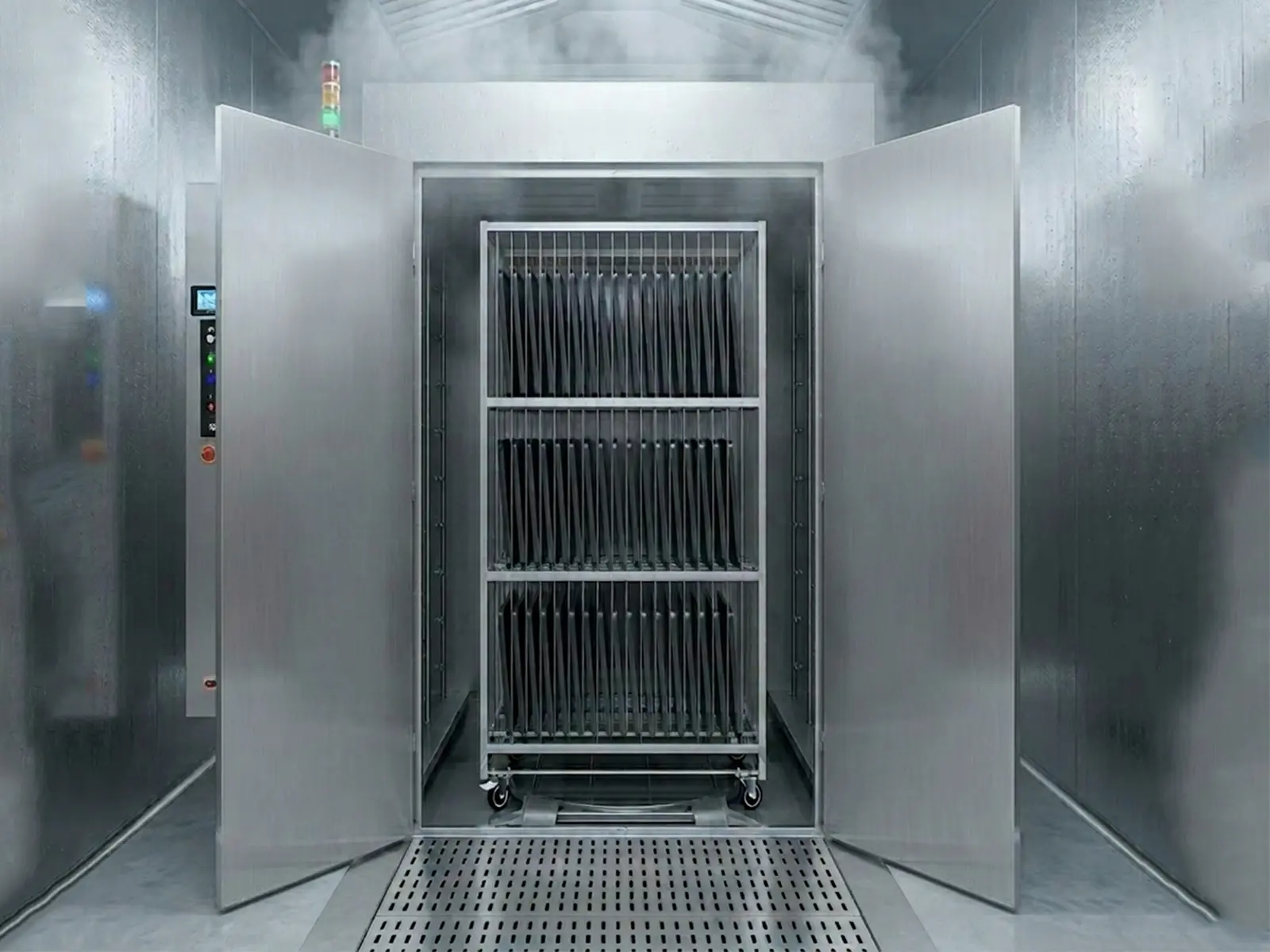

The platform machine for industrial bakery, central kitchen, airline catering and food processing. 45 trays in 6 minutes. Customizable to your trolleys.
45
Trays / cycle
6 min
Cycle time
82°C
Sanitization
SUS304
Construction
How it works
1
Roll in
Drive trolley directly into chamber on its own wheels
2
Pre-rinse
Low-pressure flush removes loose debris
3
Wash

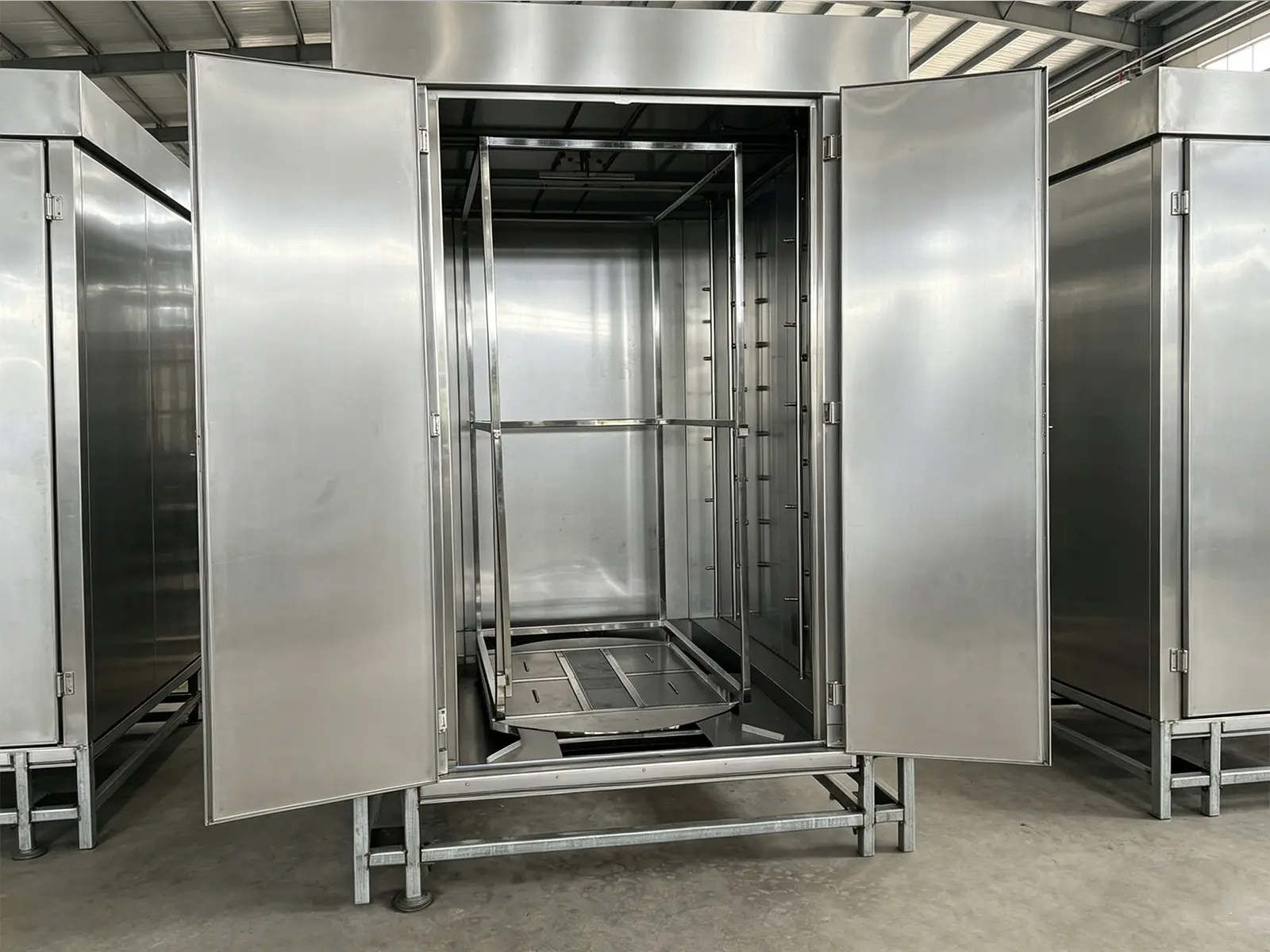

70°C alkaline detergent + 360° spray nozzles
4
Sanitize
82°C fresh-water rinse, NSF/ANSI 3 documented
5
Roll out
Doors open; load is clean, sanitized, audit-logged
Key features
30–40% lower price
Versus Douglas Machines and LVO for equivalent throughput.
Customizable chamber dimensions
Width 700–900 mm × depth 900–1200 mm × height 1700–2100 mm.
Roll-in loading eliminates lifting
No ergonomic injury risk.
PLC touch-screen
30-minute operator training. Easier than button panels.
Electric 70 kW OR steam 7 kW
Flexibility for plants with or without existing steam.
CE / ISO 9001 / NSF / FDA
EU + U.S. + Middle East compliance.
Heat recovery preheats water
~15% energy savings.
Adjustable cycle time
Tunable for soil severity.
What it cleans
- ✓ Baking trays (18×26 inch, 600×400 mm, GN1/1)
- ✓ Oven racks and shelving
- ✓ Full bakery rack trolleys
- ✓ Gastronorm hotel pans
- ✓ Mixer bowls, dough hooks, paddles
- ✓ Grill carts and rotisserie trolleys
- ✓ Cambro storage tubs
- ✓ Hot-bar pans, sushi trays, sheet pans
Frequently Asked Questions
What is the PTW-1900's cycle time?
6 minutes Standard cycle; 9–12 minutes for Heavy cycles. Up to 45 trays per cycle.
What is the heating power?
Electric version 70 kW peak. Steam version 7 kW electric (uses 35 kg/hr steam at 8-10 bar).
Is it CE / NSF certified?
Yes. CE marked, ISO 9001 manufactured, NSF/ANSI 3 compliant, FDA-compliant materials and chemistry.
Can chamber dimensions be customized?
Yes. Width 700–900 mm × depth 900–1200 mm × height 1700–2100 mm. +2 weeks lead time.
