Eight Features That Define the PTW-1900

1. 30–40% lower price than Douglas Machines / LVO

A V-TAI PTW-1900 ships FOB Shenzhen at approximately USD $42K–$48K depending on configuration. The equivalent Douglas Machines 1536-N runs $65K–$90K depending on configuration. Same throughput. Same sanitization spec. Same global certifications.

The price difference comes from V-TAI's Smart Localization methodology — 92% vertically-controlled supply chain with French Schneider Electric controls + Pearl River Delta localized component sourcing. This is not cheap labour arbitrage; it's an engineered cost structure built on digitized workflows and EU-grade engineering rigor applied in China's agile manufacturing infrastructure. We document a 25% material waste reduction and 30% faster production turnaround vs traditional rack-washer manufacturing.

Operational implication: Capital budget for two PTW-1900s costs less than one Douglas 1536-N. Plants that would otherwise buy single-machine capacity can buy parallel redundancy.

2. Customizable rack dimensions

Standard chamber: 750 × 1000 × 1900 mm. Customizable to width 700–900 mm × depth 900–1200 mm × height 1700–2100 mm. The chamber is engineered around your trolley, not the other way around.

Douglas Machines and LVO ship fixed-dimension chambers. Plants with non-standard trolleys (custom bakery rack widths, oversize airline catering ULDs, hospital meal-cart variants) buy the closest-fit standard chamber and accept inefficient loading. V-TAI engineers chamber dimensions in the CAD review stage; +2 weeks lead time, no premium pricing.

Operational implication: No need to replace your trolley fleet to fit the washer. The washer fits your fleet.

3. Roll-in loading eliminates manual handling

The double-leaf hinged doors open the full chamber width. Floor is flush with the loading apron (pit install) or accessed via a 1:8 ramp. Trolleys roll in on their own wheels. No lifting, no manual transfer.

The hidden cost of conventional dishwashing is musculoskeletal injury. Plants running manual transfer of trolleys + dishes log 1–3 workers' comp claims per year per facility from shoulder, back and wrist injuries. The PTW-1900's roll-in design eliminates the lifting motion entirely.

Operational implication: Insurance premium reduction on liability lines. Easier hiring (the job is physically easier). Compliance with EU ergonomic directives and OSHA recommendations.

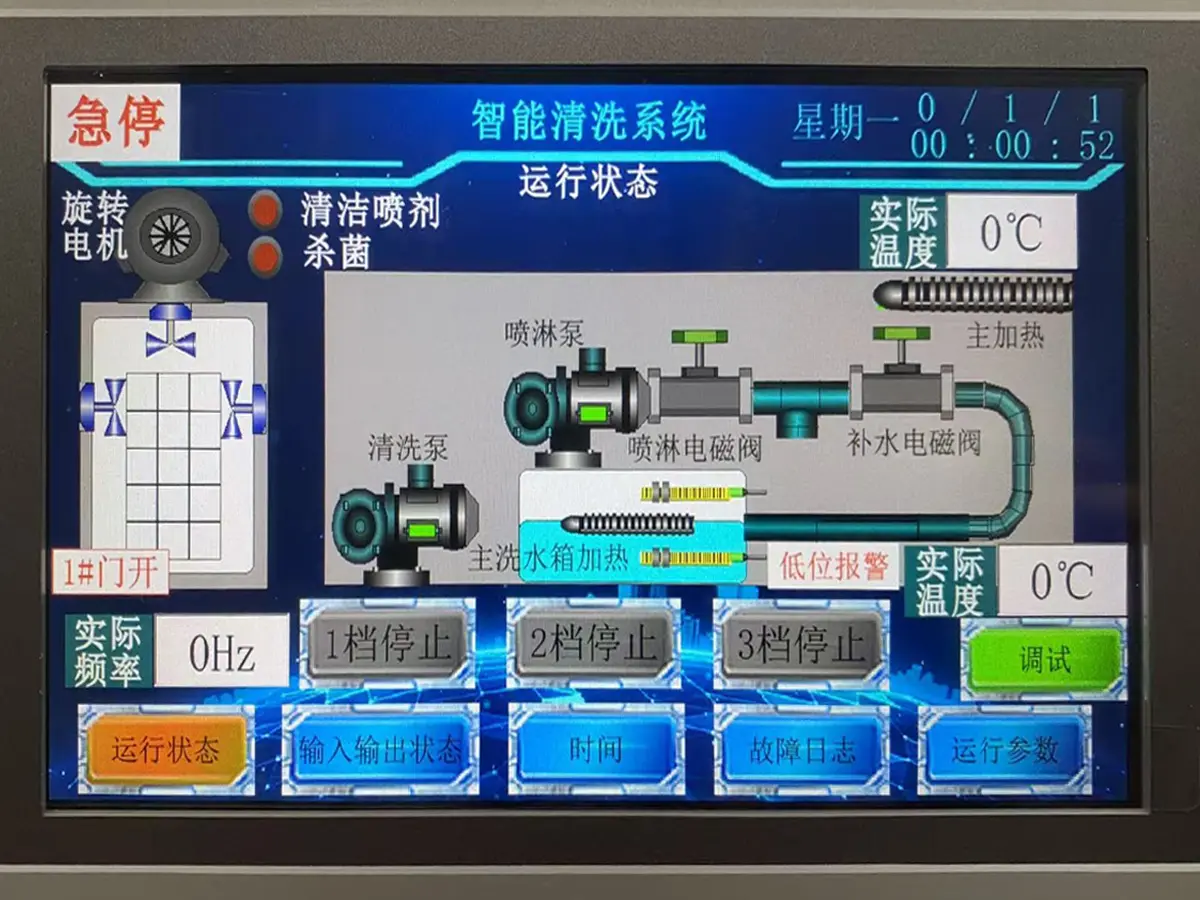

4. PLC touch-screen control

Color touch-screen HMI mounted on the machine front. Operator selects a stored cycle profile (Standard, Heavy, Allergen Reset, Sanitization Only), presses Start. Training time from cold to competent: 30 minutes.

Douglas Machines and LVO standard machines use button-panel control with mechanical timers and analog gauges. Training time on legacy interfaces is 4–8 hours and operator-error rate is measurably higher. The PLC interface also enables CSV cycle logging and Modbus / OPC-UA integration with plant SCADA — the audit chain that legacy button-panel machines cannot produce.

Operational implication: Reduced training burden, reduced operator-error incidents, audit-grade traceability.

5. Dual heating: electric 70 kW OR steam 7 kW

Choose at order time: electric heating (self-contained, no external infrastructure) or steam heating (uses your plant steam loop, drops electrical load to 7 kW). Both versions achieve identical cleaning and sanitization performance.

Why it matters: plants without steam infrastructure (commissaries, schools, hotels, supermarkets) need electric. Plants with steam loops (food processors, dairies, breweries, hospitals, large bakeries) save 60–70% operating cost with steam version. The PTW-1900 is the same machine — only the heating module changes.

Operational implication: Right-size operating cost to your existing utility infrastructure. Don't pay for electric heating when steam is already available.

6. CE / ISO 9001 / NSF / FDA-compliant

Global market certifications cover EU, U.S., Middle East, and Asian regulatory environments. CE marking under the Low Voltage Directive and Machinery Directive. ISO 9001 quality management certified production. NSF/ANSI 3 commercial dishwashing equipment compliance. FDA-compliant materials and chemistry.

Why it matters: regulatory compliance is non-optional for industrial food equipment. Equipment without these markings cannot be installed in most large operations. V-TAI's certification suite covers the global export markets that matter to industrial buyers — North America, EU, Middle East, South-East Asia, Africa, Latin America.

Operational implication: No regulatory re-validation needed at install. Pre-cleared for the major audit frameworks.

7. Heat recovery system

Optional heat-recovery exchanger captures exhaust steam and uses it to preheat incoming cold water. Incoming water rises from ~15°C to ~45°C before reaching the booster tank. The booster's reheat job shrinks; energy consumption drops ~15%.

Payback economics: ~$2,800 add-on cost vs ~$8,000–$13,000 annual energy saving at typical industrial volume. Three-month payback for plants running 60,000+ cycles/year, twelve-month payback for smaller operations.

Operational implication: ESG / sustainability metrics improve. Operating cost drops. Carbon footprint reduces measurably.

8. Adjustable cycle time

PLC stores multiple cycle profiles: Quick 4-min, Standard 6-min, Heavy 9-min, Heavy 12-min, Sanitization Only 8-min, Acid Cycle 6-min. Operator selects per-load. Supervisors can author new profiles for specific soil scenarios.

Why it matters: not every load needs a Heavy cycle. Tuning cycle time to soil severity saves 20–40% of energy and labour-hours over a year of mixed-soil operation. The PTW-1900 is the only machine in its class that exposes cycle-tuning to the operator without sacrificing the audit-traceability of stored profiles.

Operational implication: Match cycle to load. Run shorter cycles on light soils and save real money on energy and throughput.
